EJ6-60
High Payload UAV Vehicle

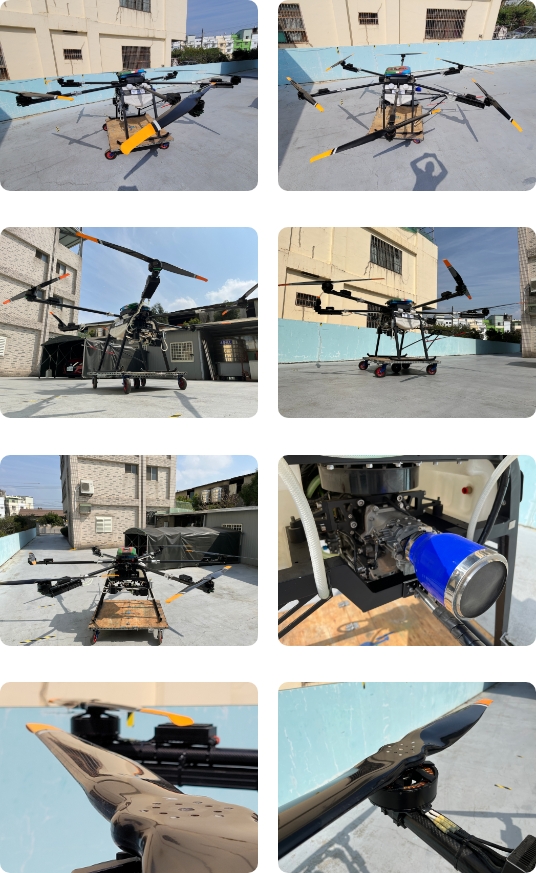

Simple and robust structure configuration with folded arms for easy transportation.
Multi-purpose drone oriented to meet customer specific mission requirement.
Multi-purpose drone oriented to meet customer specific mission requirement.
The weight is 129kg and it can be transported using a hand truck with a maximum load capacity of 60kg.。
After folding, the dimensions are 2.5m x 1.6m x 1.4m, and it can be transported and loaded onto a truck.
Features
01.
Smart Agricultural (Spraying)
- Spray width: 5 Meters
- Flight speed: 5M/S
- 50L Payload Spraying Time: 10 Minutes
- Maximum Spraying Area : 14,500 square meter
02.
Fire Extinguishing
- Spray Width: 4 Meters
- Flight Speed: 3M/S
- Max Payload: 50L Extinguishing Agent
- Maximum Spraying Area : 3,000 square meter
03.
High Voltage Insulator Cleaning
- Effective Spray Distance: 4 Meters
- Max Payload: 50L Water or Cleaning Agent
- Cleaning Speed: Per Customer Requirement
- Maximum Cleaning Capability per Max Payload: 1 or 2 towers
04.
Cargo Delivery
- Maximum Flight Distance: 15KM
- Maximum Flying Speed: 7M/S
- Maximum Payload: 50KG
- Maximum Parcel Size: 50cm x 70cm x 30cm (WDH)
EJ6-60
EJ6-60 can provide power tower Insulator Washing, fire extinguishing, plant protection spraying, offshore fan maintenance, solar panel cleaning/maintenance... and other functions. In the future, it is expected to develop logistics, express delivery, mountain disaster relief, material transportation, and crop transportation. ...and other business.
Technical Data
| MODEL | EJ6-60 |
|---|---|
| Number of Axes | 6Axes |
| Max Diagonal Wheelbase | 3.7Meter |
| Power Mode | Gasoline Hybrid |
| Payload | Maximum Usable Payload 60KG |
| Propeller Material | Carbon Fiber Propeller |
| Maximum Take-off Weight | 195KG |
| Empty Weight | 129±5 KG |
| Maximum Cruise Speed | 25 KM/H |
| Maximum Flyable Beaufort Scale | ≦Level 6 |
| Maximum Flying Altitude | 1500 Meter |
| Endurance | 60-70 Minutes |
| Fuel Tank Volume | 13 Liters |
| Propeler Fully Expanded Dimension | 5.4Mx5.4Mx1.4M |
| Propeler Folded Dimension | 2.5Mx1.6Mx1.4M |
| Operating Temperature | -20 to 45°C |
PGC_VTOL
Agent fixed-wing UAV-PGC_VTOL
| Key Specifications | |
|---|---|
| Wingspan | 4.12m / 13.5 ft |
| Max Takeoff Weight | 32kg / 70lb |
| Ceiling | 5,000m / 16,400ft |
| Endurance* | 12+ hrs |
| Communications Range* | up to 180km / 112 mi |
| Cruise Speed | 30+ kts |
| Max Speed | 65+ kts |
| Comms Type | Silvus Dual S & C band standard |
01.
SIGINT Drones Detection
- Coverage Range : 10km
- Azimuth Coverage : Omni-directional(360°)
- Whole band coverage : 400MHz - 6000MHz
02.
DAiR RADAR
- Antenna Type : Active Electronically Scanned Array(AESA)
- Detection Range : up to 8 km for commercial drones
- Number Of Targets : >200
03.
Jamming Sensor
- Jamming Coverage : 7km
- Azimuth Coverage : Omni-directional(360°)
- All relevant bands : 400MHz - 6000MHz
04.
EO/IR
- Type : Daylight Camera
- Resolution : 1920 x 1080 pixels
- Type : Thermal(Infrared) Camera
- Resolution : 640 x 512 pixels
05.
Portable Detection System
- Detection range : 1km
- Maximum weight : 3.1kg
- Max dimensions : 31 x 6.5 x 10 cm
ReDrone
Agent Counter Drone System-ReDrone
